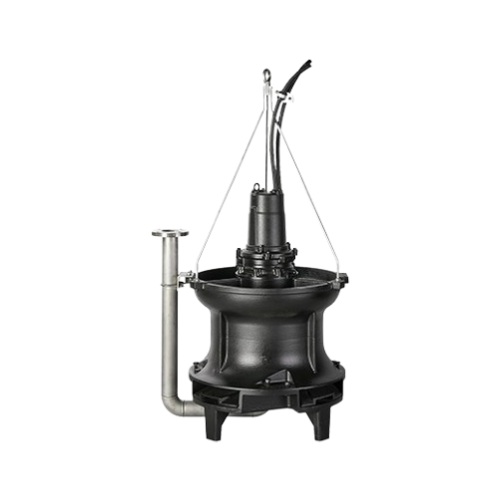

TSURUMI TAR Series Submersible Aerator
TSURUMI TAR Series is a submersible pump designed for aeration and mixing in wastewater treatment processes. It utilizes an Axial-Flow Impeller, offering high efficiency in generating currents that facilitate effective aeration and mixing.
Key Features:
- 4-Way Aeration Design: Ensures even distribution of air and water currents across the entire area.
- Efficient Mixing and Aeration: Increases dissolved oxygen in water, improving the efficiency of wastewater treatment.
- Easy Installation: Can be installed on a guide rail fitting system for convenient setup and maintenance.
Recommended Applications:
- Wastewater treatment in industrial plants and municipalities: Used for aeration and mixing in wastewater treatment tanks.
- Wastewater treatment from livestock farms: Assists in aeration and mixing in farm wastewater treatment systems.
Specification
| Discharge pipe | Model | Motor | Phase |
|---|---|---|---|
| (mm) | (kW) | ||
| 65 | 65TAR41.5 | 1.5 | 3-phase |
| 65 | 65TAR42.2 | 2.2 | 3-phase |
| 80 | 80TAR43.7 | 3.7 | 3-phase |
| 100 | 100TAR45.5 | 5.5 | 3-phase |
| 125 | 125TAR47.5 | 7.5 | 3-phase |
| 150 | 150TAR411 | 11 | 3-phase |
| 150 | 150TAR415 | 15 | 3-phase |
| 200 | 200TAR422 | 22 | 3-phase |
| 250 | 250TAR430 | 30 | 3-phase |
