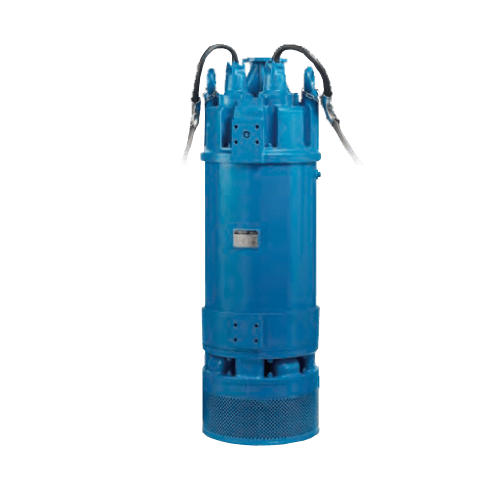

TSURUMI LH Series is a high-head submersible pump designed for deep well dewatering in mining, construction, and industrial applications. Featuring a slim, cylindrical design, it allows installation in narrow spaces while ensuring efficient motor cooling. Made from durable cast iron with high-chromium impellers, the LH Series delivers reliable performance in high-pressure environments.
Key Features:
- High-Head Performance:
Designed for deep well dewatering and high-pressure applications. - Slim, Cylindrical Design:
Enables installation in narrow wells and confined spaces. - Efficient Motor Cooling:
Flow-through design ensures optimal cooling, even in low water levels. - Durable Construction:
Made from robust cast iron with high-chromium impellers for wear resistance.
Applications:
- Deep well dewatering
- Construction site drainage
- Industrial and commercial water transfer

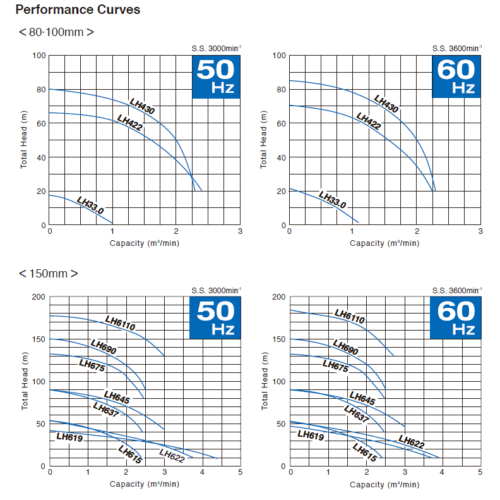

Performance Curve
TSURUMI LH Series Specifications
| Discharge Bore | Model | Motor output | Phase | Starting Method | Solid Passage | Dimensions | Weight | Cable Length |
| mm. | Kw. | mm. | L x H | Kg. | m. | |||
| mm. | ||||||||
| 80 | TSURUMI LH33.0 | 3 | THREE | D.O.L | 6 | 185×645 | 42 | 20 |
| 100 | TSURUMI LH422 | 22 | D.O.L | 6 | 420×1352 | 350 | 10 | |
| 100 | TSURUMI LH430 | 30 | Star-Delta | 6 | 420×1352 | 355 | 10 | |
| 150 | TSURUMI LH615 | 15 | D.O.L | 8.5 | 33×1014 | 213 | 10 | |
| 150 | TSURUMI LH619 | 19 | D.O.L | 12 | 420×1423 | 350 | 10 | |
| 150 | TSURUMI LH622 | 22 | D.O.L | 12 | 420×1423 | 360 | 10 | |
| 150 | TSURUMI LH637 | 37 | Star-Delta | 6 | 530×1448 | 495 | 10 | |
| 150 | TSURUMI LH645 | 45 | Star-Delta | 6 | 530×1448 | 510 | 10 | |
| 150 | TSURUMI LH675 | 75 | Star-Delta | 8 | 563×1676 | 865 | 10 | |
| 150 | TSURUMI LH690 | 90 | Star-Delta | 10 | 592×1787 | 1100 | 20 | |
| 150 | TSURUMI LH6110 | 110 | Star-Delta | 10 | 592×1787 | 1200 | 20 | |
| 150 | TSURUMI LH837 | 37 | Star-Delta | 20 | 530×1448 | 495 | 10 | |
| 200 | TSURUMI LH845 | 45 | Star-Delta | 20 | 530×1448 | 510 | 10 | |
| 200 | TSURUMI LH855 | 55 | Star-Delta | 20 | 563×1716 | 810 | 10 | |
| 200 | TSURUMI LH875 | 75 | Star-Delta | 20 | 563×1716 | 865 | 10 | |
| 200 | TSURUMI LH890 | 90 | Star-Delta | 20 | 592×1787 | 1150 | 20 | |
| 200 | TSURUMI LH8110 | 110 | Star-Delta | 20 | 592×1787 | 1250 | 20 |
