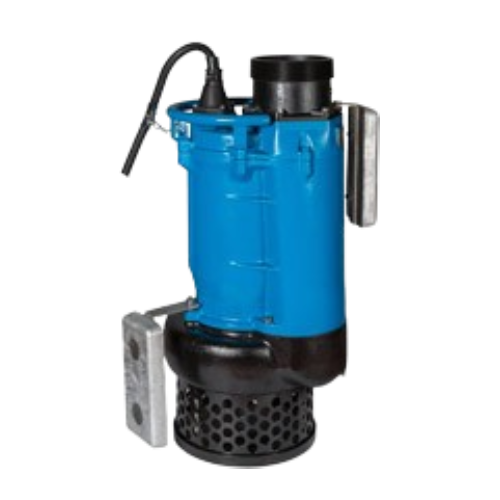

TSURUMI KRS Series is a high-capacity, three-phase submersible pump made from high-quality cast iron. Powered by a 4-pole motor, it is designed for efficient dewatering in demanding environments such as mining, construction, and industrial applications.
Key Features:
- Durable Construction:
Made from wear-resistant cast iron, ensuring durability in harsh conditions. - 4-Pole Motor:
Low-speed motor reduces impeller tip speed, minimizing wear and extending pump lifespan. - Efficient Motor Cooling:
The top discharge design ensures optimal motor cooling, even when exposed to air.
Applications:
- Mine dewatering
- Construction dewatering
- Industrial water drainage
TSURUMI KRS Series Submersible Pump Specifications
MODEL | Discharge Bore | Motor output | Dry Weight | Dimensions mm | |
mm | kW | kg | D | H | |
TSURUMI KRS2-CA/A3 | 80 | 2.2 | 72 | 340 | 619 |
TSURUMI KRS2-D3/B3 | 80 | 3.7 | 91/89 | 362/349 | 704 |
TSURUMI KRS2-C4/A4 | 100 | 3.7 | 88 | 349 | 719 |
TSURUMI KRS2-D4/B4 | 100 | 5.5 | 98/95 | 362/349 | 709 |
TSURUMI KRS2-C6/A6 | 150 | 7.5 | 130 | 415 | 767 |
TSURUMI KRS2-D6/B6 | 150 | 11 | 158/150 | 434/415 | 813/812 |
TSURUMI KRS-8S | 200 | 11 | 174 | 472 | 933 |
TSURUMI KRS815 | 200 | 15 | 235 | 481 | 1069 |
TSURUMI KRS819 | 200 | 18.5 | 385 | 576 | 1241 |
TSURUMI KRS822 | 200 | 22 | 390 | 576 | 1241 |
TSURUMI KRS822L | 200 | 22 | 390 | 576 | 1241 |
TSURUMI KRS1022 | 250 | 22 | 450 | 520 | 1439 |
TSURUMI KRS Series Submersible Pump Dimensions
Model | d | A | A1 | B | B1 | D | H | W1 |
KRS2-CA/A3 | 80 | 340 | 255 | 620 | 499 | 315 | 600 | 145 |
KRS2-D3 | 80 | 365 | 275 | 705 | 584 | 350 | 685 | 155 |
KRS2B3 | 80 | 350 | 260 | 705 | 584 | 320 | 685 | 155 |
KRS2-C4/A4 | 100 | 350 | 260 | 720 | 584 | 320 | 685 | 155 |
KRS2-D4 | 100 | 365 | 275 | 710 | 574 | 350 | 675 | 155 |
KRS2-B4 | 100 | 350 | 260 | 710 | 574 | 320 | 675 | 155 |
KRS2-C6 | 150 | 415 | 305 | 767 | 585 | 373 | 685 | 175 |
KRS2-A6 | 150 | 415 | 305 | 767 | 585 | 373 | 685 | 175 |
KRS2-D6 | 150 | 434 | 324 | 813 | 632 | 407 | 744 | 180 |
KRS2B6 | 150 | 415 | 605 | 812 | 630 | 373 | 742 | 175 |
KRS-8S | 200 | 472 | 356 | 933 | 701 | 403 | 814 | 300 |
KRS815 | 200 | 481 | 348 | 1069 | 837 | 440 | 949 | 275 |
KRS819 | 200 | 572 | 445 | 1238 | 1006 | 530 | 1156 | 345 |
KRS822 | 200 | 572 | 445 | 1238 | 1006 | 530 | 1156 | 345 |
KRS822L | 200 | 572 | 445 | 1238 | 1006 | 530 | 1156 | 345 |
KRS1022 | 250 | 520 | 250 | 1439 | 1156 | – | – | 450 |
