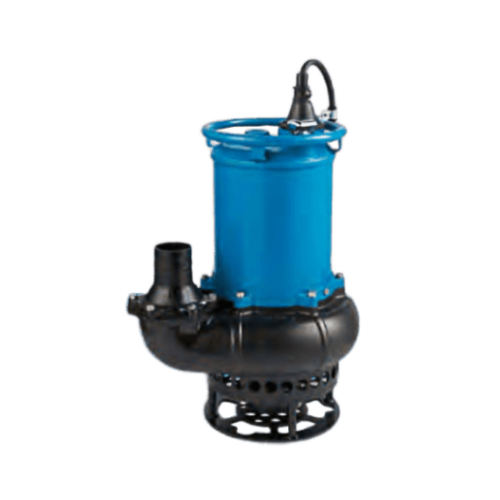

TSURUMI GPN Series Submersible Pump
TSURUMI GPN Series is a high-powered submersible pump designed for pumping water with heavy sediments, sludge, and large solids. Its corrosion-resistant construction enhances durability and extends lifespan. The Agitator impeller stirs up sediment for easy suction, reducing clogging issues. This pump is ideal for dredging, mining, and heavy industries requiring high efficiency and durability in harsh environments.
Key Features:
- High-powered submersible pump for handling water with heavy sediments and large solids
- Durable, corrosion-resistant materials for extended lifespan
- Agitator impeller stirs up sediment, preventing clogging
- Ideal for demanding applications such as dredging, mining, and heavy industries
- High-efficiency motor for continuous operation and reduced energy costs
Recommended Applications:
- Dredging sediment and sand from rivers and reservoirs
- Industrial wastewater treatment systems
- Construction and mining operations
- Pumping water containing solids like sludge or gravel

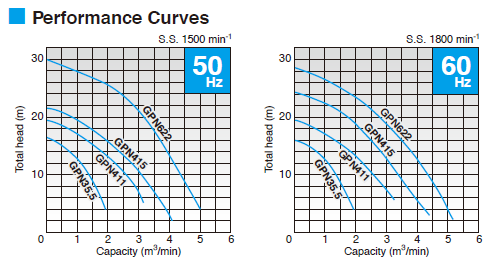

Performance Curve
Specifications
| Outlet Pipe | Model | Motor | Phase | Starting System | Weight | Cable Length |
| mm. | Kw. | Kg. | m. | |||
| 80 | TSURUMI GPN35.5 | 55 | Three | D.O.L | 145 | 8 |
| 100 | TSURUMI GPN411 | 11 | D.O.L | 217 | 8 | |
| 100 | TSURUMI GPN415 | 15 | D.O.L | 220 | 10 | |
| 150 | TSURUMI GPN622 | 22 | D.O.L | 415 | 10 |

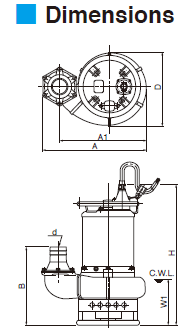

Dimensions
| Model | d | A | A1 | B | D | H | W1 |
| TSURUMI GPN35.5 | 80 | 487 | 425 | 449 | 390 | 796 | 290 |
| TSURUMI GPN411 | 100 | 617 | 518 | 500 | 451 | 879 | 315 |
| TSURUMI GPN415 | 100 | 617 | 518 | 500 | 451 | 879 | 315 |
| TSURUMI GPN622 | 150 | 725 | 625 | 528 | 572 | 1102 | 300 |
