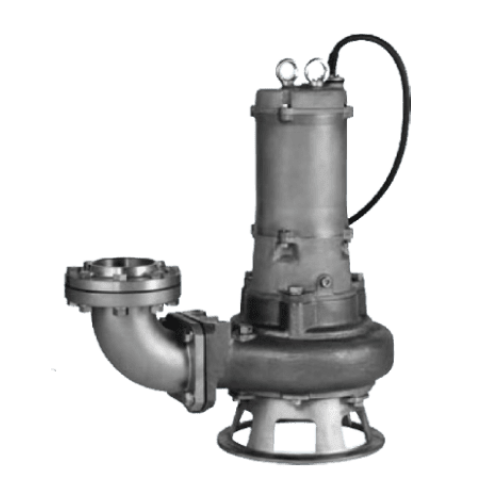

TSURUMI CQ Series Submersible Pump
TSURUMI CQ Series Submersible Pump is designed to handle solids without clogging. It features a tungsten carbide-coated impeller and a serrated wear plate, which effectively crushes solids. This pump is ideal for wastewater management in environments with high levels of solids, such as food factories, dairy plants, and slaughterhouses.
Key Features:
- Tungsten Carbide-Coated Impeller: The impeller with a tungsten carbide coating ensures durability and efficiency in crushing solids.
- Serrated Wear Plate: The serrated wear plate aids in crushing solids, ensuring smooth pump operation.
- Stainless Steel Construction: Components in contact with the fluid are made of high-quality stainless steel, enhancing the pump’s durability and extending its lifespan.
- Compact Design: The compact and lightweight design makes installation and use easier in confined spaces.
Specifications:
| Model | Discharge Bore | motor output | Phase | Speed | Starting method | Solids Passage | Cable Length |
| mm | kW | min-1 | mm | m | |||
| 50CQ2.75 | 50 | 0.75 | Three | 3000/3600 | D.O.L. | 18 | 6 |
| 80CQ21.5 | 80 | 1.5 | Three | 3000/3600 | D.O.L. | 29 | 6 |
| 100CQ42.2 | 100 | 2.2 | Three | 1500/1800 | D.O.L. | 35 | 6 |
| 100CQ43.7 | 100 | 3.7 | Three | 1500/1800 | D.O.L. | 55 | 6 |

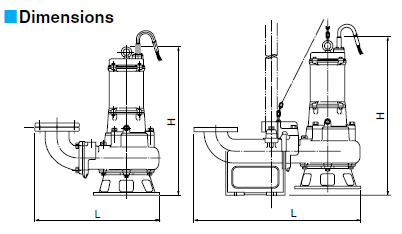

TSURUMI CQ Series Dimensions:
| Model | Dimensions L x H (mm.) | Weight (kg.) |
| Standard Model | Standard Model | |
| 50CQ2.75 | 409×483 | 40 |
| 80CQ21.5 | 424×559 | 50 |
| 100CQ42.2 | 603×653 | 93 |
| 100CQ43.7 | 603×735 | 109 |
