TSURUMI C Series
TSURUMI C Series submersible pump is designed for wastewater and sewage applications containing solids and fibrous materials.
Key Features:
- Cutting Mechanism:
Equipped with a tungsten carbide-tipped impeller and a serrated wear plate, effectively cutting solids and fibers to prevent clogging. - Durable Construction:
Made from high-quality cast iron for excellent wear and corrosion resistance, ensuring long-lasting performance. - Motor Protection:
Includes a built-in motor protection system to prevent damage from dry running or power surges, enhancing reliability.
Applications:
- Wastewater Treatment Plants:
Ideal for pumping sewage with solids and fibrous materials. - Food and Poultry Industry:
Used for managing wastewater from food processing operations. - Commercial and Industrial Sewage Systems:
Suitable for wastewater management in commercial buildings and industrial facilities.
TSURUMI C Series Specifications
| Model | Discharge Bore (mm) | Motor Output (kW) | Max Head (m) | Max Flow Rate (m³/min) | Impeller Type | Cutting Mechanism | Material |
|---|---|---|---|---|---|---|---|
| C-50 | 50 | 0.75 | 10 | 0.3 | Single-channel | Tungsten carbide tip | Cast iron |
| C-80 | 80 | 1.5 | 12 | 0.8 | Single-channel | Tungsten carbide tip | Cast iron |
| C-100 | 100 | 3.7 | 18 | 1.5 | Single-channel | Tungsten carbide tip | Cast iron |
| C-150 | 150 | 7.5 | 22 | 3.0 | Two-channel | Tungsten carbide tip | Cast iron |
| C-200 | 200 | 37 | 35 | 6.5 | Two-channel | Tungsten carbide tip | Cast iron |

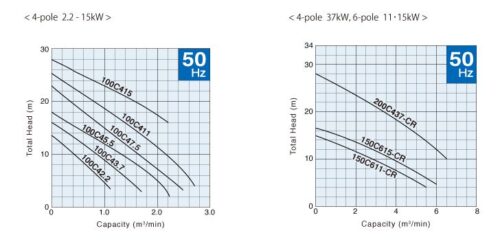

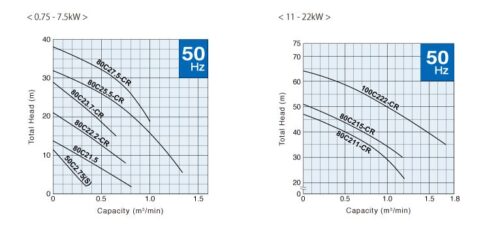

Performence Curve
