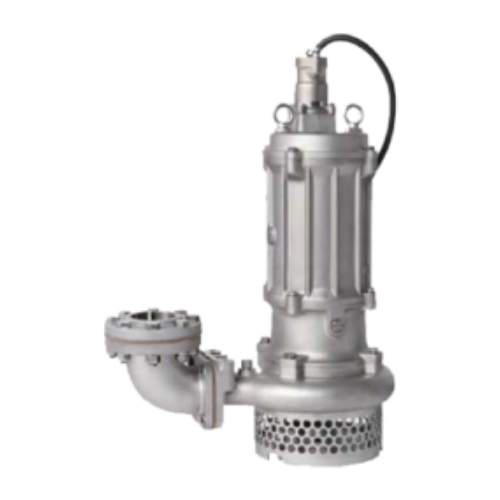

TSURUMI BQ Series Submersible Pump
TSURUMI BQ Series Submersible Pump is designed to handle wastewater with high acidity. It features high-quality 304 stainless steel impellers, ensuring excellent corrosion resistance and prolonged pump life.
Key Features:
- Durable Material:
All parts in contact with water are made of 304 stainless steel, which is highly resistant to corrosion and increases the pump’s lifespan. - Impeller Design:
The pump uses a channel impeller specifically designed for handling wastewater with corrosive substances. - High Efficiency:
The BQ Series provides high performance in pumping corrosive wastewater, making it ideal for wastewater treatment plants and industries with specific demands.
Applications:
- Wastewater Treatment Plants:
Suitable for pumping corrosive wastewater in wastewater treatment processes. - Chemical Industries:
Ideal for managing wastewater with high chemical or acidic content. - Food Industries:
Suitable for handling corrosive wastewater generated during food production processes.

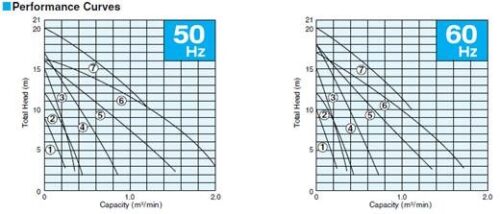

Performance Curve
TSURUMI BQ Series Specifications
| Model | Discharge Pipe | Motor | Electrical System | Speed | Motor Start System |
Solids Passage |
Cable Length |
| mm | kW | min-1 | mm | m | |||
| TSURUMI 50BQ2.4 | 50 | 0.4 | Three | 3000/3600 | D.O.L. | 19/17 | 6 |
| TSURUMI 50BQ2.75 | 50 | 0.75 | Three | 3000/3600 | D.O.L. | 20/24 | 6 |
| TSURUMI 50BQ2.75H | 50 | 0.75 | Three | 3000/3600 | D.O.L. | 20 | 6 |
| TSURUMI 80BQ21.5 | 80 | 1.5 | Three | 3000/3600 | D.O.L. | 25 | 6 |
| TSURUMI 100BQ42.2 | 100 | 2.2 | Three | 1500/1800 | D.O.L. | 40 | 6 |
| TSURUMI 100BQ43.7 | 100 | 3.7 | Three | 1500/1800 | D.O.L. | 53/45 | 6 |
| TSURUMI 100BQ43.7H | 100 | 3.7 | Three | 1500/1800 | D.O.L. | 35 | 6 |
Dimensions
| Model | Dimensions (Length x Height) (mm) | Weight (kg) |
| Standard Model | Standard Model | |
| TSURUMI 50BQ2.4 | 340×450 | 25 |
| TSURUMI 50BQ2.75 | 410×506 | 40 |
| TSURUMI 50BQ2.75H | 409×483 | 40 |
| TSURUMI 80BQ21.5 | 424×558 | 50 |
| TSURUMI 100BQ42.2 | 603×653 | 93 |
| TSURUMI 100BQ43.7 | 603×735 | 109 |
| TSURUMI 100BQ43.7H | 637×727 | 109 |
