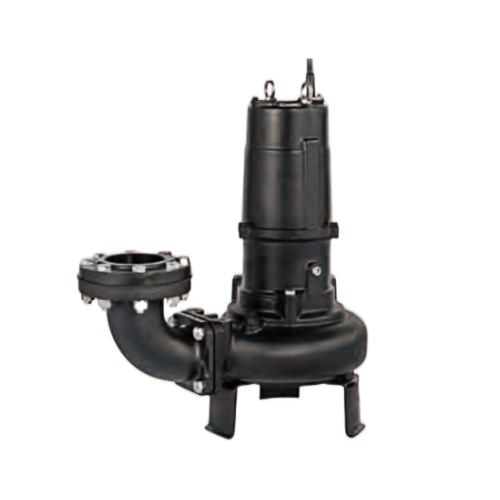

TSURUMI 700B Series Submersible Pump
TSURUMI 700B Series is a wastewater submersible pump designed to handle water containing large sediments and solids in industrial applications and wastewater treatment systems. Made from high-quality cast iron, it ensures durability and long service life. Equipped with a Channel Impeller, it reduces clogging and enhances pumping efficiency, making it ideal for high-flow, continuous operation.
Key Features:
- Channel Impeller: Reduces clogging from solids and fibers
- Durable Cast Iron Construction: Increases service life and reliability
- High-Performance Motor: Supports continuous operation in demanding conditions
Recommended Applications:
- Industrial wastewater treatment systems
- Municipal pumping stations and water utilities
- Large-scale drainage systems with high sediment and solid volumes
Performance Curve
Specifications
| Model | Motor | Power System | Motor Starting System | Cable Length | |
| Free Standing | Guide Rail Fitting | kW. | m. | ||
| TSURUMI 700B1265 | TO700B1265 | 65 | Three | Star-Delta | 10 |
| TSURUMI 700B1465 | TO700B1465 | 65 | Three | Star-Delta | 10 |
| TSURUMI 700B1275 | TO700B1275 | 75 | Three | Star-Delta | 10 |
| TSURUMI 700B1475 | TO700B1475 | 75 | Three | Star-Delta | 10 |

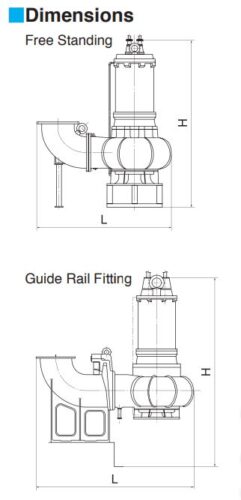

Dimensions
| Model | Dimensions (L × H) (mm) | Weight (kg) | ||
| Free standing | Guide Rail Fitting | Free standing | Guide Rail Fitting | |
| TSURUMI 700B1265 | 2840×3562 | 3440×3660 | 4000 | 4400 |
| TSURUMI 700B1465 | 2840×3560 | 3440×3660 | 4000 | 4400 |
| TSURUMI 700B1275 | 2840×3560 | 3440×3660 | 4200 | 4600 |
| TSURUMI 700B1475 | 2840×3560 | 3440×3660 | 4200 | 4600 |
