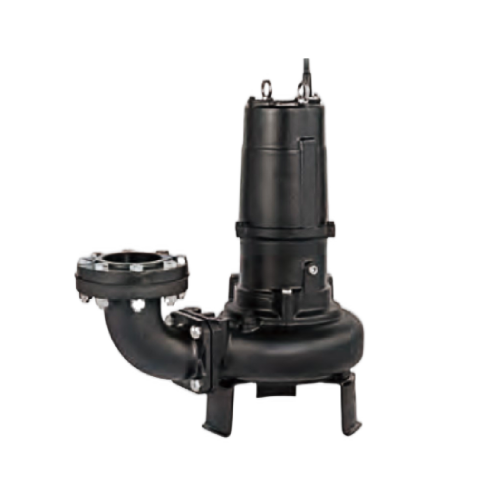

TSURUMI 600B Series
TSURUMI 600B Series is a submersible pump designed for handling wastewater with large sediments and solids in industrial applications and wastewater treatment systems. Constructed from high-quality cast iron, it ensures durability and long service life. Equipped with a Channel Impeller, it reduces clogging and improves pumping efficiency, making it ideal for high-flow, continuous operation.
Key Features:
- Channel Impeller: Reduces clogging from solids and fibers
- Durable Cast Iron Construction: Increases service life and reliability
- High-Performance Motor: Supports continuous operation in demanding conditions
Recommended Applications:
- Industrial wastewater treatment systems
- Municipal pumping stations and waterworks
- Large-scale drainage systems with heavy sediment and solids
Performance Curve
Specifications
| Model | Motor | Power System | Motor Starting System | Cable Length | |
| Free Standing | Guide Rail Fitting | kW. | m. | ||
| TSURUMI 500B1037 | TO500B1037 | 37 | Three | Star-Delta | 10 |
| TSURUMI 500B1237 | TO500B1237 | 37 | Three | Star-Delta | 10 |
| TSURUMI 500B855 | TO500B855 | 55 | Three | Star-Delta | 10 |
| TSURUMI 500B675 | TO500B675 | 75 | Three | Star-Delta | 10 |
| TSURUMI 500B875 | TO500B875 | 75 | Three | Star-Delta | 10 |
Dimensions
| Model | Dimensions (L × H) (mm) | Weight (kg.) | ||
| Free standing | Guide Rail Fitting | Free standing | Guide Rail Fitting | |
| TSURUMI 500B1037 | 2073×2081 | 2624×2183 | 2050 | 1950 |
| TSURUMI 500B1237 | 2073×2081 | 2624×2183 | 2050 | 1950 |
| TSURUMI 500B855 | 2111×2077 | 2662×2225 | 2150 | 2050 |
| TSURUMI 500B675 | 2263×1987 | 2814×2152 | 2150 | 2050 |
| TSURUMI 500B875 | 2150×2694 | 2700×2644 | 2550 | 2450 |
