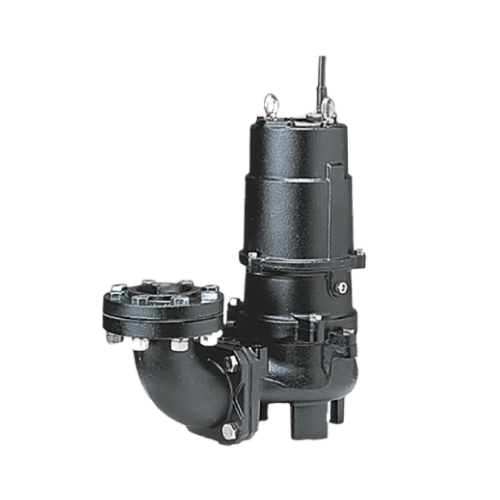

TSURUMI 200B Series
TSURUMI 200B Series Submersible Pump is a wastewater pump designed to handle water containing sediment and debris. It is ideal for wastewater treatment in industrial plants, drainage systems, and construction sites. Featuring a Semi-Open Channel Impeller that reduces clogging, a durable cast iron construction, and a high-efficiency motor, this pump accommodates discharge sizes starting from 200 mm (8 inches) and is available with motor power ranging from 7.5 to 22 kW, making it suitable for pumping wastewater, sewage, and treated sludge.
Key Features:
- Semi-Open Channel Impeller: Reduces clogging from solids and fibrous materials.
- Durable Cast Iron Construction: Enhances service life and reliability.
- High-Efficiency Motor: Supports continuous operation under demanding conditions.
Recommended Applications:
- Wastewater treatment in industrial plants
- Drainage systems
- Construction dewatering

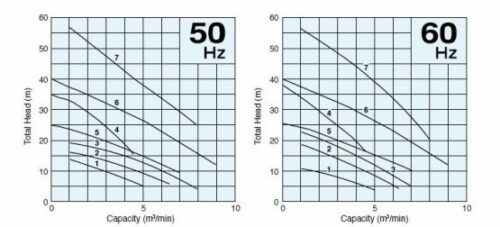

Performance Curve
Specifications
| Model | Motor | Electrical system | Motor start system | Sediment passage | Cable Length | |
| Free Standing | Guide Rail Fitting | kW | mm | m | ||
| TSURUMI 200B47.5 | TO200B47.5 | 7.5 | Three | D.O.L | 80×60 | 8 |
| TSURUMI 200B411 | TO200B411 | 11 | Three | Star-Delta | 68×60 | 8 |
| TSURUMI 200B415 | TO200B415 | 15 | Three | Star-Delta | 70×60 | 8 |
| TSURUMI 200B422H | TO200B422H | 22 | Three | Star-Delta | 75 | 10 |
| TSURUMI 200B422 | TO200B422 | 22 | Three | Star-Delta | 75 | 10 |
| TSURUMI 200B437 | TO200B437 | 37 | Three | Star-Delta | 40×77 | 10 |
| TSURUMI 200B455 | TO200B455 | 55 | Three | Star-Delta | 40×110 | 10 |
Dimensions
| Model | Dimensions (Length x Height) (mm.) | Weight (kg.) | ||
| Free standing | Guide Rail Fitting | Free standing | Guide Rail Fitting | |
|
TSURUMI 200B47.5 |
926×1085 | 1266×1050 | 207 | 212 |
| TSURUMI
200B411 |
926×1131 | 1266×1096 | 258 | 263 |
| TSURUMI
200B415 |
971×1196 | 1234×1161 | 300 | 285 |
| TSURUMI
200B422H |
953×1222 | 1117×1181 | 332 | 298 |
| TSURUMI
200B422 |
953×1222 | 1117×1181 | 323 | 289 |
| TSURUMI
200B437 |
1190×1571 | 1428×1458 | 670 | 565 |
| TSURUMI
200B455 |
1188×1698 | 1499×1612 | 1060 | 1020 |
