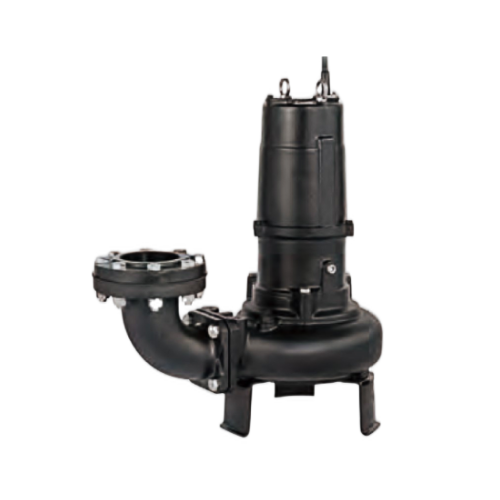

TSURUMI 100B Series Submersible Pump
TSURUMI 100B Series submersible pump is designed for wastewater applications, handling sediment and sewage efficiently. It is ideal for industrial wastewater treatment, drainage, and construction dewatering. Equipped with a Semi-Open Channel Impeller, this pump reduces clogging issues. Its robust cast iron construction and high-efficiency motor ensure durability and reliable performance. The series supports discharge pipe sizes starting from 100 mm (4 inches) and motor power ranging from 2.2 kW to 7.5 kW, making it suitable for pumping wastewater, sewage, and treated sludge.
Key Features:
- Semi-Open Channel Impeller – Reduces clogging caused by solids and fibrous materials.
- Durable Cast Iron Construction – Enhances longevity and reliability.
- High-Efficiency Motor – Designed for continuous operation in demanding conditions.
Recommended Applications:
- Industrial wastewater treatment
- Drainage and sewage disposal
- Construction dewatering

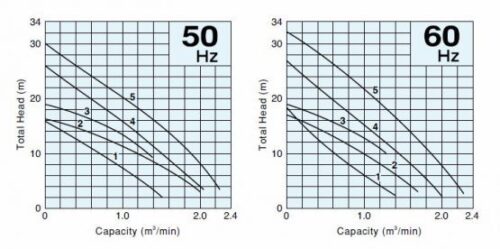

Performance Curve
| Model | Standard model | Automatic model | Auto-Alternation model | motor output | Phase | Starting method | Solids Passage | Cable Length | |||
| Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | kW | mm | m | |||
| TSURUMI 100B | TSURUMI 100B42.2 | TOS100B42.2 | TSURUMI 100BA42.2 | TOS100BA42.2 | TSURUMI 100BW42.2 | TOS100BW42.2 | 2.2 | Three | D.O.L | 47×53 | 6 |
| TSURUMI 100B43.7 | TOS100B43.7 | TSURUMI 100BA43.7 | TOS100BA43.7 | TSURUMI 100BW43.7 | TOS100BW43.7 | 3.7 | Three | D.O.L | 81×53 | 6 | |
| TSURUMI 100B43.7H | TOS100B43.7H | – | – | – | – | 3.7 | Three | D.O.L | 35×62 | 6 | |
| TSURUMI 100B45.5 | TOS100B45.5 | – | – | – | – | 5.5 | Three | D.O.L | 40×51 | 8 | |
| TSURUMI 10047.5 | TOS10047.5 | – | – | – | – | 7.5 | Three | D.O.L | 40×61 | 8 | |
Dimensions
| Model | Dimensions L x H mm | Dry weight (kg.) | ||||||
| Standard Model | Auto& Auto-Alternation Model |
Standard Model | Auto& Auto-Alternation Model |
|||||
| Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | |
| TSURUMI
100B42.2 |
596×642 | 754×656 | 602×733 | 760×748 | 68 | 64 | 78 | 74 |
| TSURUMI 100B43.7 | 602×716 | 760×725 | 602×863 | 760×873 | 84 | 80 | 94 | 90 |
| TSURUMI 100B43.7H | 603×692 | 761×706 | – | – | 82 | 78 | – | – |
| TSURUMI 100B45.5 | 603×908 | 905×906 | – | – | 147 | 140 | – | – |
| TSURUMI
10047.5 |
687×929 | 905×927 | – | – | 169 | 162 | – | – |
