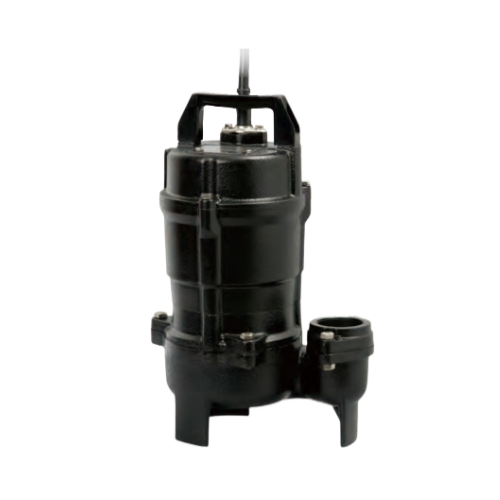

Submersible Pump TSURUMI UT Series
The Submersible Pump TSURUMI UT Series are compact, cost-effective cast iron pumps designed for various applications. They feature a large passage, making them ideal for pumping liquids containing solids. Equipped with heat-resistant silicon carbide seals, these pumps can operate in run-dry situations, and a motor protector prevents overheating. The semi-vortex, stainless steel impeller can handle solids and stringy materials without
Specifications
- Discharge Bore: 40 mm and 50 mm
- Motor Output: 0.25 kW to 0.75 kW
- Impeller Type: Semi-vortex, stainless steel
- Seal Type: Heat-resistant silicon carbide
- Construction Material: Cast iron
- Automatic Operation: Available with pendant float switch (UTZ models)
- Applications: Sewage and wastewater pumping
TSURUMI UT Series Specifications
| Specification | Details |
| Discharge Bore | 40 mm and 50 mm |
| Motor Output | 0.25 kW to 0.75 kW |
| Impeller Type | Semi-vortex, stainless steel |
| Seal Type | Heat-resistant silicon carbide |
| Construction Material | Cast iron |
| Automatic Operation | Available with pendant float switch (UTZ models) |
| Applications | Sewage and wastewater pumping |
| Max Head | 13 meters (depending on model) |
| Max Flow | 230 liters/min (depending on model) |
| Voltage | 220V (single-phase) |
| Pump Type | Submersible |
| Protection | Motor protector, IP68 protection |
| Temperature Range | 0°C to 40°C |

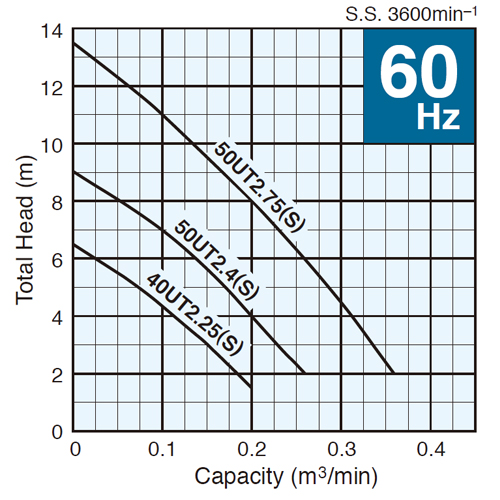

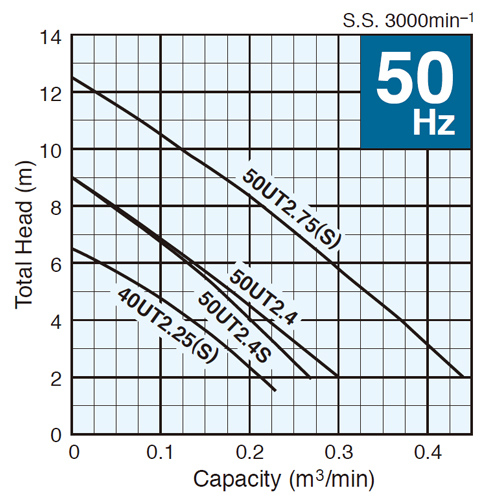

TSURUMI UT Series Performance Curve

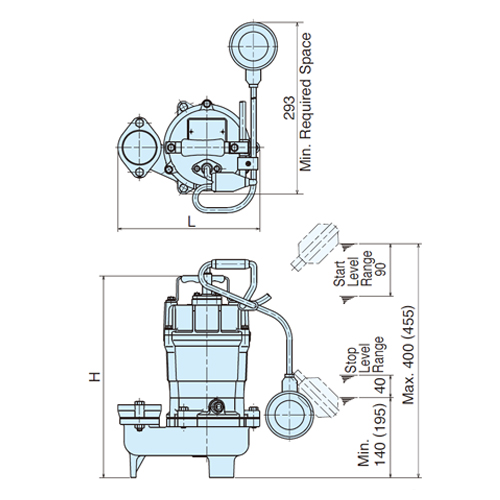

TSURUMI UT Series Dimensions
