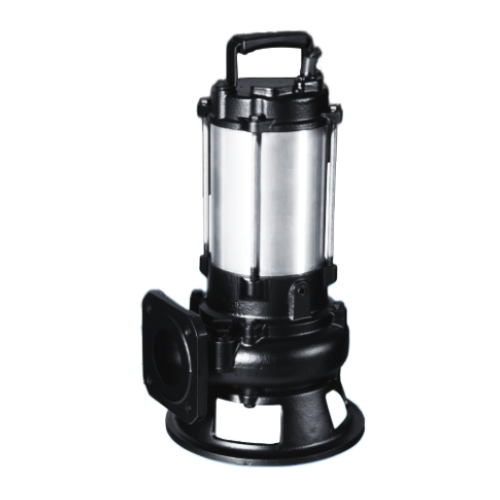

KIRA UM Series Submersible Wastewater Pump – High-Quality Japanese Brand
The KIRA UM Series submersible wastewater pump is a top-tier Japanese product, designed for efficient wastewater management in industrial and commercial applications. Equipped with a high-performance motor and heat-treated impellers, it ensures durability and superior functionality. The motor’s stator windings are coated with an industrial-grade varnish and heat-cured, ensuring exceptional insulation and protection. The pump is certified with an IP68 rating, offering reliable waterproofing.
Applications:
- Basement Wastewater Drainage: Ideal for buildings, hotels, and factories.
- Industrial Wastewater: Efficient in draining wastewater from manufacturing processes.
- Septic Tank Cleaning: Suitable for wastewater pits, tanks, and pumping stations.
- Surface Water Pumping: Perfect for garages, sprinkler systems, and drainage systems.
Key Features:
-
- Double Mechanical Seals: Made from durable silicon carbide, providing excellent resistance to wear and tear.
- High-Efficiency Motor: The stator windings are insulated with varnish for enhanced performance and durability.
- Automatic Motor Protection: The motor features an auto shut-off system that activates during abnormal current or temperature conditions, resetting itself once normal conditions resume.
- Epoxy-Coated Cables: Prevents moisture ingress into the motor, enhancing longevity.
- Flexible Installation Options: Can be installed using a 90° elbow, flange, or Guide Rail System (GRS), allowing for easy maintenance and replacement.

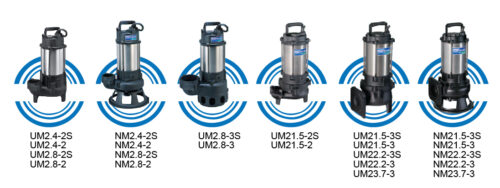

Performance Spec
| Model | Motor Output (kW) |
Pole/ Phase (0) |
Discharge Bore (mm.) |
|---|---|---|---|
| UM2.4-2S | 0.4 | 2P/ 10 | 50 |
| UM2.4-2 | 0.4 | 2PZ 30 | 50 |
| UM2.8-2S | 0.75 | 2P/ 10 | 50 |
| UM2.8-2 | 0.75 | 2PZ 30 | 50 |
| UM2.8-3S | 0.75 | 2PZ 10 | 80 |
| UM2.8-3 | 0.75 | 2PZ 30 | 80 |
| UM21.5-2S | 1.5 | 2PZ 10 | 50 |
| UM21.5-2 | 1.5 | 2PZ 30 | 50 |
| UM21.5-3S | 1.5 | 2PZ 10 | 80 |
| UM21.5-3 | 1.5 | 2PZ 30 | 80 |
| UM22.2-3S | 2.2 | 2PZ 10 | 80 |
| UM22.2-3 | 2.2 | 2PZ 30 | 80 |
| UM23.7-3 | 11 | 2PZ 30 | 80 |
| Model | Motor Output (kW) |
Pole/ Phase (0) |
Discharge Bore (mm.) |
|---|---|---|---|
| NM2.4-2S | 0.4 | 2P/ 10 | 50 |
| NM2.4-2 | 0.4 | 2PZ 30 | 50 |
| NM2.8-2S | 0.75 | 2PZ 10 | 50 |
| NM2.8-2 | 075 | 2PZ 30 | 50 |
| NM21.5-3S | 1.5 | 2PZ 10 | 80 |
| NM21.5-3 | 1.5 | 2PZ 30 | 80 |
| NM22.2-3S | 2.2 | 2PZ 10 | 80 |
| NM22.2-3 | 2.2 | 2P/ 30 | 80 |
| NM23.7-3 | 3.7 | 2P/ 30 | 80 |

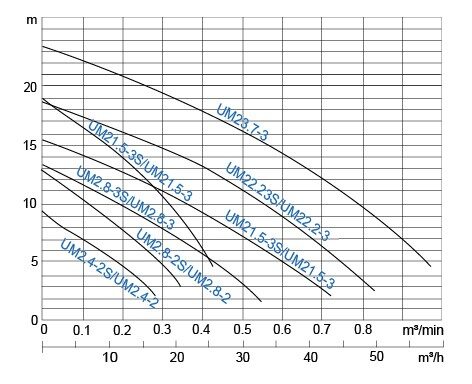

Performance Curves
