Submersible Pump KIRA NP Series
KIRA NP Series submersible pump, a leading brand from Japan, is designed as a Submersible Sewage Pump suitable for wastewater and sewage applications. The KIRA NP model is ideal for various uses, including:
- Wastewater treatment systems in condominiums, hospitals, offices, and other buildings.
- Industrial wastewater treatment systems in diverse industries.
- Drainage and sanitation systems for infrastructure projects.
- Agricultural wastewater treatment in farms.
- Hydraulic engineering and flood control management.
Key Features of the KIRA NP Series:
- Epoxy-coated body: Offers excellent corrosion resistance.
- Food-grade lubricants: Environmentally friendly and compliant with safety standards.
- Double mechanical seals: Prevent oil leakage into the motor chamber and water ingress into the oil chamber, ensuring durability and efficiency.
- Various models available: Designed to meet diverse operational needs.
Impeller Design:
- Models NP2.4 and NP2.8 feature a VORTEX impeller for superior solids handling.
- Models NP21.5 and above come with a semi-open impeller, ideal for handling larger debris and higher flow rates.
Performance Curve
| Detail (Discharge 2″-4″) | |||
| Motor | Body | ||
| Frequency | 50/ 60Hz | Impeller | Non-clog type (Channel, Semi open or Vortex) |
| Phase | Three-phase (Single-phase upon request) | FC200 | |
| Motor | Dry submersible induction motor | M.seal | Double mechanical seal |
| 2P (3,000 rpm)/ 4P (1,500 rpm) | CA/CE & SiC/SiC | ||
| Insulation | Class F (Up to 2.2 kW)/ Class F (3.7-11 kW) |
Bearing | Ball type |
| Protection | IP68 | Upper Cover | FC200 |
| Motor Protection | Auto-cut protector (built-in) up to 7.5kW | Motor Frame | FC200 |
| MTS from 11kW | Shaft | Stainless steel | |
| Water Leak Protection | Moisture sensor from 11kW | Casing | FC200 |
| Cable | VCT or PNCT or H07RN-F or SJOW/SOW | ||
| Application Liquid Temp Wastewater, Sewage and Farming 0 – 40 C (32 – 104 F) | |||

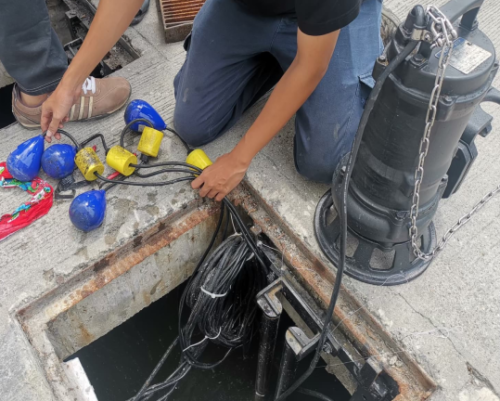

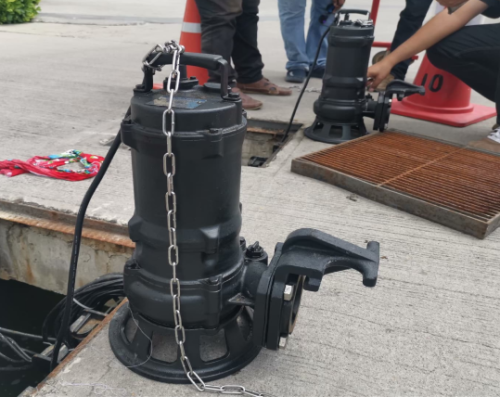

Additional illustrative images
