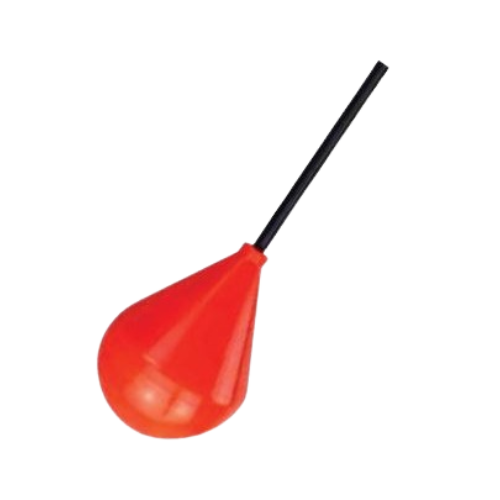

Cable-Type Float Switch SANCO FA-10302-6, FA-1030-6 Series
Cable-Type Float Switch SANCO FA-10302-6 & FA-1030-6 Series
The SANCO FA-10302-6 and FA-1030-6 Series cable-type float switches are specially designed water level control devices featuring a patented teardrop shape. This unique design increases water contact area and provides high buoyancy, ensuring efficient operation even in wastewater environments with a high presence of debris. The float switch utilizes a high-precision micro switch for accurate water level detection, supporting a voltage rating of 3A 250VAC. With an IP68 protection rating and a 6-meter silicone cable, it is highly resistant to oil, sludge, and harsh environments, making it suitable for both clean water and wastewater applications.
Key Features:
- Patented teardrop design – Enhances water contact area and buoyancy for optimal performance
- High-quality micro switch – Supports 3A 250VAC voltage rating
- Durable materials – Made with ABS housing and a silicone cable for longevity
- IP68 protection rating – Ensures complete protection against water and dust
- 6-meter cable length – Easy installation with flexible application options
Applications:

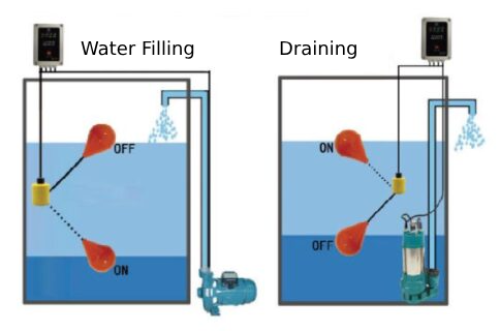

- Wastewater treatment systems – Controls water levels in treatment tanks and reservoirs
- Aquaculture ponds – Regulates water levels in fish, shrimp, and other aquatic farming ponds
- Water storage tanks – Ensures optimal water levels in clean and wastewater storage tanks
Specifications
| Model | FA-10302-6, FA-1030-6 |
|---|---|
| Switch | Microswitch |
| Microswitch | 3A 250VAC |
| Voltage | 2 kg/cm (or at 20 meters below the water surface) |
| Operating pressure | -30°C- 60°C |
| Materials used to manufacture valves | ABS |
| Valve size | ɸ 68 x 95 mm |
| Cable material | Silicone cable |
| Cable core | White, Red, Total 2 cores at 0.5 mm2, 6.5 OD |
| Protection level | IP68 |
| Service life | 50,000 |
| Resistance | Resistant to oil and dirt |
| Cable length | 6M |
